G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance

모든 범주

G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance

브랜드 이름:	HX
모델 번호:	HX-GL2
MOQ:	1

상세 정보

제품 설명

상세 정보

원래 장소:

광동, 중국

CE/ROHS/ISO9001

지휘자 수:

케이블 색상:

재킷 재료:

PE 재킷

케이블 구조:

다중 느슨한 튜브

섬유 옵션:

Itu G652D, G657A, Om1, Om2, Om3, Om4

강도 멤버:

중앙강철선 또는 유리섬유강화플라스틱(FRP)

감쇠 @1310nm:

0.36dB/km 이하(G.652), 0.40dB/km 이하(G.655)

약화 @1550nm:

0.22dB/km 이하(G.652), 0.23dB/km 이하(G.655)

대역폭 @850nm:

≥500MHz*km(50/125μm), ≥200MHz*km(62.5/125μm)

대역폭 @1300nm:

≥1000MHz*km(50/125μm), ≥600MHz*km(62.5/125μm)

수치 조리개:

0.200±0.015NA(50/125μm), 0.275±0.015NA(62.5/125μm)

컷오프 파장:

1260nm 이하(G.652), 1450nm 이하(G.655)

케이블 직경:

9.2mm ~ 16.5mm(섬유 개수에 따라 다름)

무방한 인장력:

600/1500 N(장기/단기)

굽힘 반경:

10D/20D(정적/동적)

저장 온도:

-40 ° C ~ +70 ° C

강조하다:

G655 Outdoor Armored Fiber Optic Cable

ITU G652D GYTS Fiber Optic Cable

G657A Armored Optical Fiber Cable

제품 설명

Hot Sale Outdoor Armored Cable With G655 GYTS Optic Fibre Cable With Stranded Loose Tube

Technical Specifications

	G.652	G.655	50/125 μm	62.5/125 μm
Attenuation (+20°C)
@850nm			≤3.0dB/km	≤3.3dB/km
@1300nm			≤1.0dB/km	≤1.0dB/km
@1310nm	≤0.36dB/km	≤0.40dB/km
@1550nm	≤0.22dB/km	≤0.23 dB/km
Bandwidth (A-level)	@850nm		≥500 MHz*km	≥200 MHz*km
@1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical aperture			0.200±0.015NA	0.275±0.015NA
Optical fiber cable cut-off wavelength		≤1260nm	≤1450nm
Applicable: pipeline, overhead

Fiber Optic Cable Configuration

Number of fibers	Number of casings	Number of filling ropes	Fiber optic cable diameter (mm)
2~6	1	4	9.2
8~12	2	3	9.2
14~18	3	2	9.2
20~24	4	1	9.2
26~30	5	0	9.2
32~36	6	0	9.7
38~48	4	1	10.5
50~60	5	0	10.5
62~72	6	0	11.5
74~84	7	1	13.2
86~96	8	0	13.2
98~108	9	1	14.6
110~120	10	0	14.6
122~132	11	1	16.5
134~144	12	0	16.5
146~216	13-18	5-0	16.5
288	24	0	16.5

Mechanical Properties

Fiber Optic Cable Weight (kg/km)	Allowable tensile force long term/short term (N)	Allowable flat pressure long term/short term (N/100mm)	Bending radius static/dynamic (mm)
80	600/1500	300/1000	10D/20D
97	1000/3000

Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)

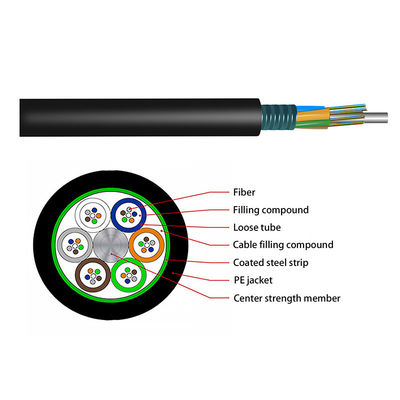

Product Characteristics

Steel jacket offers high tension and crush resistance
Special gel in the tube offers critical protection for the fibers

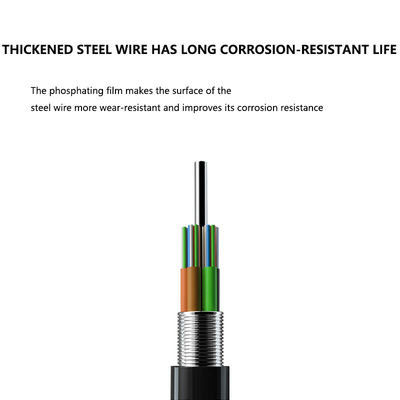

With steel central strength member

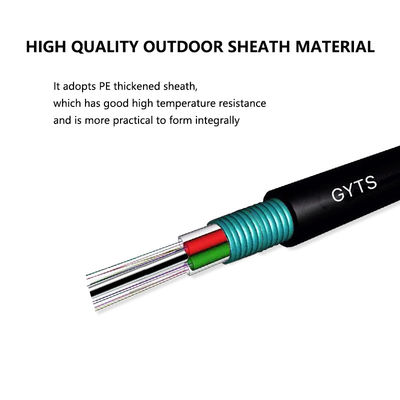

PE jacket prevents UV damage (UV-resistant material can be added)
Excellent performance under high and low temperatures
Anti-aging properties

Applications

Conduit/buried installations
Connecting communication equipment
Multi-core wiring systems in data centers

Standards Compliance

GYTS complies with YD/T901-2009 and IEC 60794-1 standards

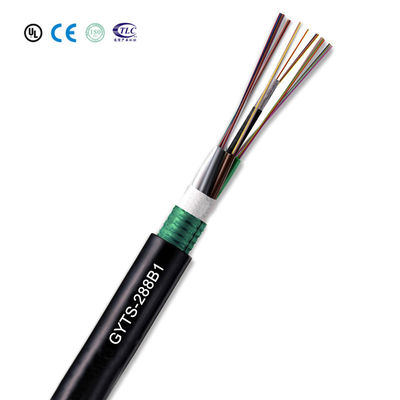

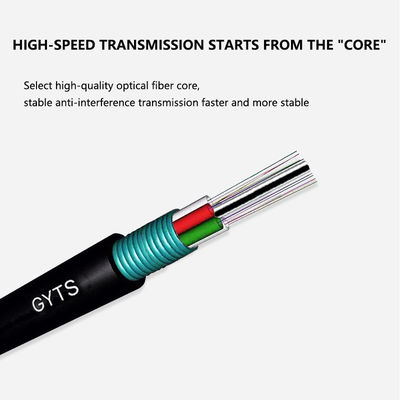

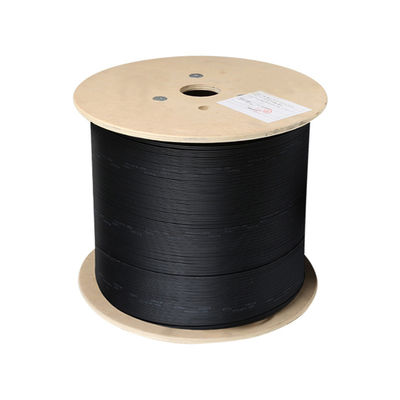

Product Images

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing and so on).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, etc.
