OEM/ODM Underground Direct Buried 2-288 Cores Outdoor Armored Fiber Optic Cable for Telecom Communication

모든 범주

OEM/ODM Underground Direct Buried 2-288 Cores Outdoor Armored Fiber Optic Cable for Telecom Communication

브랜드 이름:	HX
모델 번호:	에이치엑스-GL1
MOQ:	1
가격:	$0.25-0.45

상세 정보

제품 설명

상세 정보

원래 장소:

광동, 중국

CE/ROHS/ISO9001

지휘자 수:

도체 코어:

2-288 코어

섬유 유형:

SM/MM/OM3

재킷 재료:

케이블 직경:

9.2-20.0mm

케이블 중량:

85-300kg/km

600-3000N/100mm

평탄화력:

300-1000N/100mm

온도 범위:

-40℃ ~ +60℃

최소 굽힘 반경:

10x(정적), 20x(동적) 케이블 직경

섬유 표준:

G.651, G.652, G.653, G.654, G.655

최대 섬유:

느슨한 튜브 당 6-12

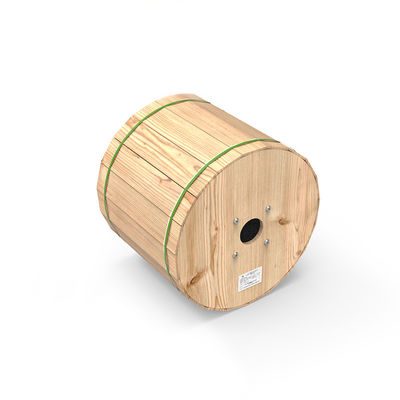

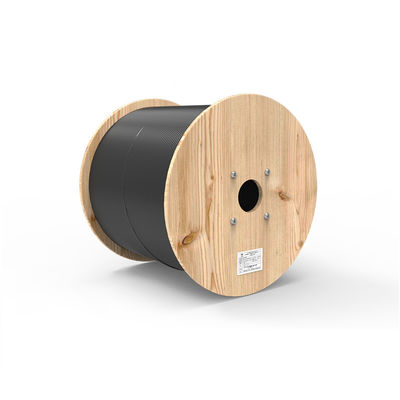

나무 드럼

UV 저항:

수분 저항:

강조하다:

2-288 Cores Outdoor Armored Fiber Optic Cable

OEM/ODM Outdoor Armored Fiber Optic Cable

Underground Direct Buried Fiber Optic Cable

제품 설명

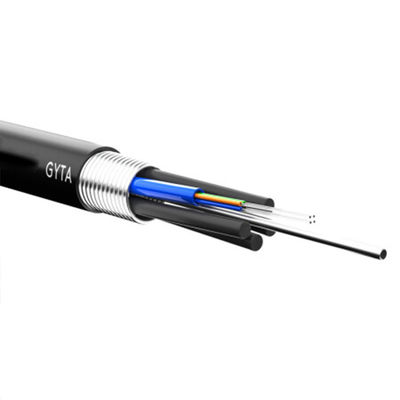

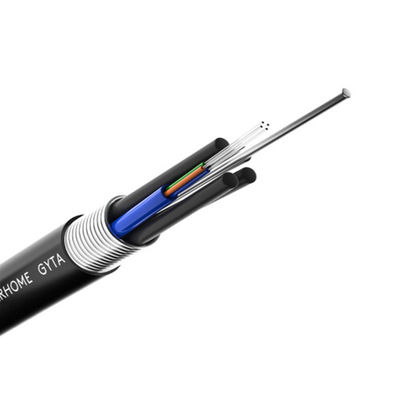

OEM/ODM Underground Direct Buried Duct Armoured Fiber Optic Outdoor Cable GYTA53/GYTA/GYTS

High-quality armoured fiber optic cable designed for underground direct burial and outdoor applications with competitive pricing.

Technical Specifications

Fiber Optic Cable Model (increments of 2 fibers)	Fiber Quantity	Optical Cable Core Unit Number	Maximum Number Of Fibers In Loose Tube
GYTA-2∽30	2∽30	5	6
GYTA-32∽36	32∽36	6	6
GYTA-38∽60	38∽60	5	12
GYTA-62∽72	62∽72	6	12
GYTA-74∽96	74∽96	8	12
GYTA-98∽120	98∽120	10	12
GYTA-122∽144	122∽144	12	12
GYTA-146∽216	146∽216	18	12
GYTA-218∽288	218∽288	24	12

Optical Cable Diameter (mm)	Optical Cable Weight (Kg/Km)	Allowable Tensile Force Long-Term/Short-Term N/100mm	Allowable Flattening Force Long/Short Term N/100mm
9.2	85	600/1500	300/1000
10.2	107	600/1500	300/1000
10.4	110	600/1500	300/1000
11.4	130	600/1500	300/1000
13.6	165	600/1500	300/1000
14.8	195	600/2000	300/1000
16.4	236	600/2500	300/1000
16.4	232	600/2500	300/1000
20.0	300	1000/3000	300/1000

Temperature Range: -40℃ to +60℃

Minimum Bending Radius: Static: 10 times the fiber optic cable diameter | Dynamic: 20 times the fiber optic cable diameter

The standard loose-tube stranded light armored (GYTA) optical cable complies with YD/T901-2001 and IEC60794-1 standards. This product is mostly used for long-distance communication and inter-office communication pipelines and overhead laying. Fiber optic cables with different core counts and different lengths can be provided according to customer needs.

Fiber Standard Comparison

Optical Fiber Type	Multi Mode	Single Mode
G.651	A1a:50/125 (Gradient Refractive Index) A1b:50/126
G.652 (A,B,C,D)		B1.1 Conventional
G.653		B2 zero-dispersion shift
G.654		B1.2 cut-off is long shifted
G.655		B4 non-zero dispersion shift

Applications

Outdoor distribution
Suitable for aerial and pipeline laying methods
Long distance and local area network communication

Key Characteristics

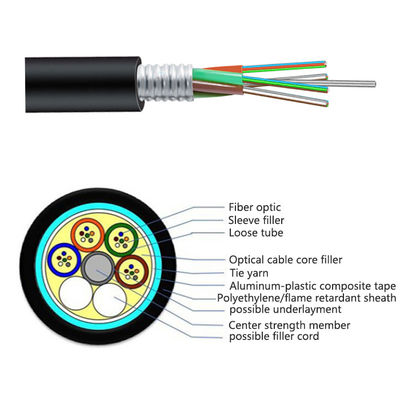

Steel wire strength with filler protection

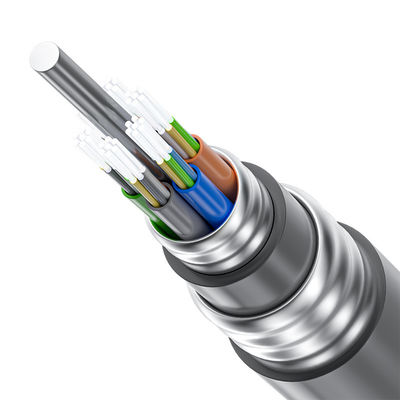

Tube fiber with steel tape armor
Excellent UV radiation resistance
Superior moisture resistance

Product Customization

We accept customization to put your good ideas into reality. Contact us for your specific requirements.

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new projects of our customers, trial orders are available.

3. Can I get a sample?

Yes, we provide FREE samples and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing, etc.).

5. How long will it take you to deliver?

Our usual delivery time is 15 to 20 days.

6. Can we trust you?

Our factory has 18 years of history, with products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, etc.
