| 브랜드 이름: | HXCOWO |
| 모델 번호: | HX-SW6 |
| MOQ: | 1000 |
| 가격: | $0.14-0.30 |
| Fiber Cores Number | Diameter (mm) | Weight (kg/km) |
|---|---|---|
| 2-12 | 10.6 | 124 |
| 14-24 | 12 | 147 |
| 26-36 | 12 | 150 |
| 38-48 | 15 | 207 |
| Allowable Tensile Force Long Term/Short Term (N) | Allow Squash Force Long Term/Short Term (N/10mm) | Bending Radius Static/Dynamic (mm) |
|---|---|---|
| 1000/3000 | 1000/3000 | 10D/20D |
Grade A fiber core / High-quality material selection / Quality assurance
Using corrosion-resistant phosphated steel wire, parallel metal reinforcement components with excellent tensile properties. Center-type bundle tube design effectively protects optical fibers and minimizes pressure impact. Suitable for various site operations.
Using A-grade fiber core with optimized attenuation and dispersion characteristics. Precise geometric parameters ensure low splicing loss and high splicing efficiency.

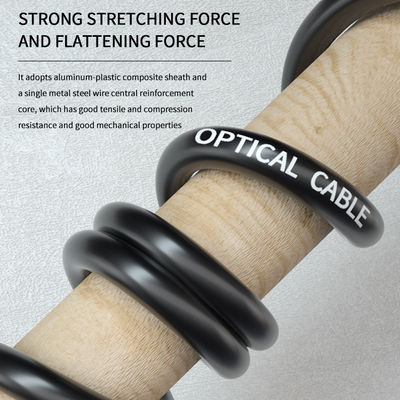

Features aluminum-plastic composite sheath and single metal steel wire central reinforcement core for excellent tensile and compression resistance with good mechanical properties.
Thickened sheath made of high-quality materials with excellent temperature resistance and tensile properties. Available in LSZH/PC/PE/PVC and other materials. Various materials can be customized.

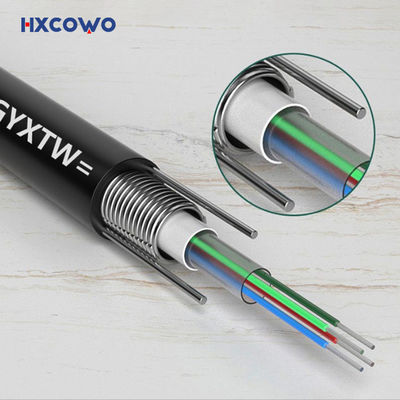

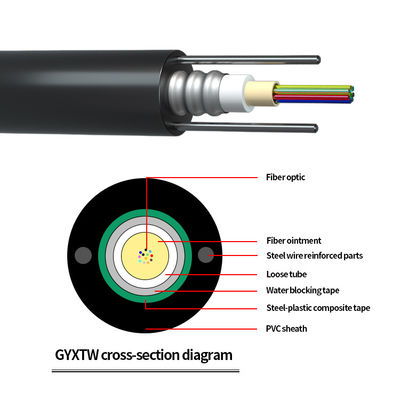

Single-mode or multi-mode optical fiber inserted into high-modulus poly loose tube filled with waterproof compound. Tubes twisted around central strengthening core with water-blocking fillers. Features small diameter, lightweight design suitable for pipeline, overhead and direct buried laying with excellent mechanical properties and temperature characteristics.
Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!
1KM. We support new project of our customers, trial order is available.
Yes, we provide FREE sample and you just need to pay for express freight.
Yes, we can customize according to your requirements (logo, package, printing etc.).
Our usual delivery date takes 15 to 20 days.
We founded the factory has 18 years of history, products exported to over 25 countries.
At the same price, our quality is better; at the same quality, our price is more favorable.
L/C, T/T, Western Union and Paypal are acceptable.
Ocean transportation, air transport, Express, etc.
|
|
