Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards

모든 범주

Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards

브랜드 이름:	HX
모델 번호:	HX-GL2
MOQ:	1

상세 정보

제품 설명

상세 정보

원래 장소:

광동, 중국

CE/ROHS/ISO9001

지휘자 수:

케이블 색상:

재킷 재료:

PE 재킷

케이블 구조:

다중 느슨한 튜브

섬유 옵션:

Itu G652D, G657A, Om1, Om2, Om3, Om4

강도 멤버:

중앙강철선 또는 유리섬유강화플라스틱(FRP)

감쇠 @1310nm:

≤0.36dB/km

약화 @1550nm:

≤0.22dB/km

대역폭 @850nm:

≥500MHz*km

대역폭 @1300nm:

≥1000MHz*km

수치 조리개:

0.200±0.015NA

컷오프 파장:

≤1260nm

저장 온도:

-40 ° C ~ +70 ° C

600/1500N

굽힘 반경:

10일/20일

강조하다:

ITU G652D/G657A/OM1-OM4 Armored Fiber Optic Cable

YD/T901-2009 & IEC 60794-1 Standards Armored Fiber Optic Cable

Underground Armored Fiber Optic Cable

제품 설명

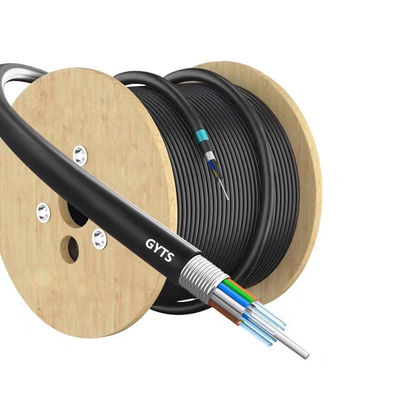

Underground Single Mode Rodent Proof GYTA/GYXTW/GYTS/GYFTS Quality Direct Buried Communication Armored Fiber Optical Cable

Technical Specifications

Parameter	G.652	G.655	50/125 μm	62.5/125 μm
Attenuation (+20°C)
@850nm			≤3.0dB/km	≤3.3dB/km
@1300nm			≤1.0dB/km	≤1.0dB/km
@1310nm	≤0.36dB/km	≤0.40dB/km
@1550nm	≤0.22dB/km	≤0.23 dB/km
Bandwidth (A-level)			≥500 MHz*km	≥200 MHz*km
@1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical aperture			0.200±0.015NA	0.275±0.015NA
Optical fiber cable cut-off wavelength	≤1260nm	≤1450nm

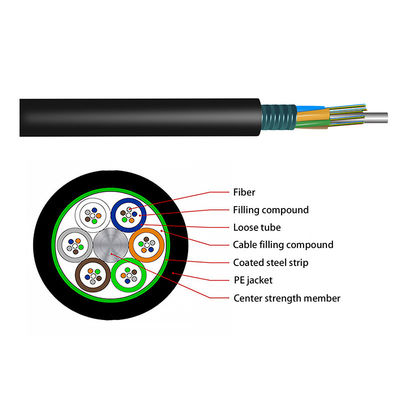

Fiber Optic Cable Configuration

Type	Number of fibers	Number of casings	Number of filling ropes	Diameter (mm)
GYTA-2~6	2~6	1	4	9.2
GYTA-8~12	8~12	2	3	9.2
GYTA-14～18	14~18	3	2	9.2
GYTA-20~24	20~24	4	1	9.2
GYTA-26~30	26~30	5	0	9.2
GYTA-32~36	32~36	6	0	9.7
GYTA-38～48	38~48	4	1	10.5
GYTA-50~60	50~60	5	0	10.5

Mechanical Properties

Weight (kg/km)	Allowable tensile force (N)	Allowable flat pressure (N/100mm)	Bending radius (mm)
80	600/1500	300/1000	10D/20D

*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)

Key Characteristics

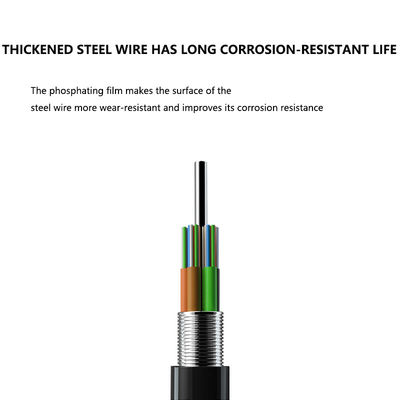

Steel jacket offers high tension and crush resistance
Special gel in the tube offers critical protection for the fibers
With steel central strength member

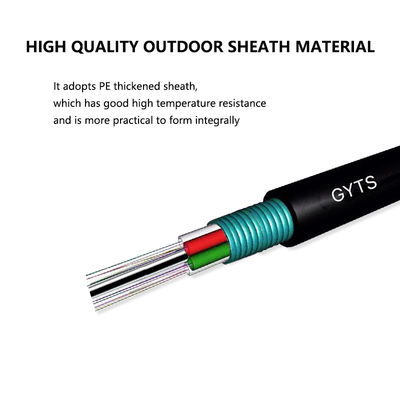

PE jacket prevents UV damage (UV-resistant material can be added)
Performs well under high and low temperatures
Anti-aging properties

Applications

Conduit/buried installations
Connecting communication equipment
Multi-core wiring systems in data centers

Standards Compliance

GYTS complies with YD/T901-2009 and IEC 60794-1 standards

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing and so on).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.
