GYTA53/GYTA/GYTS Black Outdoor Fiber Optic Cable For Underground Direct Buried Duct

모든 범주

GYTA53/GYTA/GYTS Black Outdoor Fiber Optic Cable For Underground Direct Buried Duct

브랜드 이름:	HX
Model Number:	에이치엑스-GL1
가격:	negotiable
포장에 대한 세부 사항:	수출 통

상세 정보

제품 설명

상세 정보

원래 장소:

광둥, 중국

CE/ROHS/ISO9001

광섬유 케이블

지휘자 수:

텔레콤 통신

제품 이름:

야외 광 섬유 케이블

맞춘 길이

2-288 핵심

섬유 종류:

SM/MM/OM3

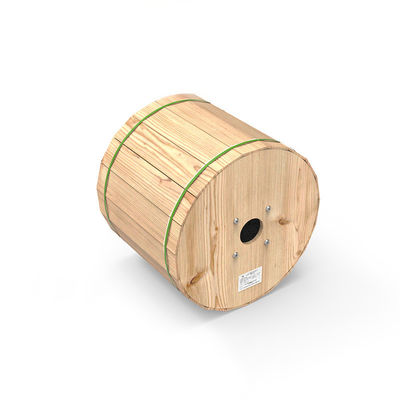

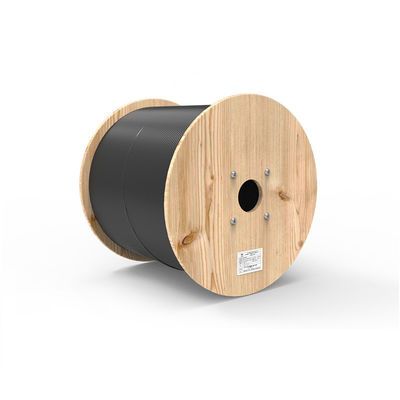

나무로 된 드럼

OEM ODM은 받아들입니다

공급 능력:

1500000개 부분 / 부분마다 달

강조하다:

GYTS Black Outdoor Fiber Optic Cable

GYTA53 Black Outdoor Fiber Optic Cable

Underground Outdoor Armored Fiber Optic Cable

제품 설명

GYTA53/GYTA/GYTS Black Fiber Optic Outdoor Cable for Underground Direct Buried Duct

Technical Parameters
Fiber Optic Cable Model (in increments of 2 fibers)	Fiber Quantity	Optical Cable Core Unit Number	Maximum Number Of Fibers In Loose Tube
GYTA-2∽30	2∽30	5	6
GYTA-32∽36	32∽36	6	6
GYTA-38∽60	38∽60	5	12
GYTA-62∽72	62∽72	6	12
GYTA-74∽96	74∽96	8	12
GYTA-98∽120	98∽120	10	12
GYTA-122∽144	122∽144	12	12
GYTA-146∽216	146∽216	18	12
GYTA-218∽288	218∽288	24	12

Optical Cable Diameter mm	Optical Cable Weight Kg/Km	Allowable Tensile Force Long-Term/Short-Term N/100mm	Allowable Flattening Force Long/Short Term N/100mm
9.2	85	600/1500	300/1000
10.2	107	600/1500	300/1000
10.4	110	600/1500	300/1000
11.4	130	600/1500	300/1000
13.6	165	600/1500	300/1000
14.8	195	600/2000	300/1000
16.4	236	600/2500	300/1000
16.4	232	600/2500	300/1000
20.0	300	1000/3000	300/1000
Adapt To The Temperature Range (℃)			-40v+60
Minimum Bending Radius	Static: 10 times the fiber optic cable diameter Dynamic: 20 times the fiber optic cable diameter			Static: 10 times the fiber optic cable diameter

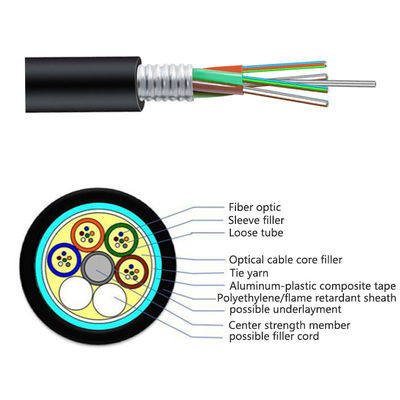

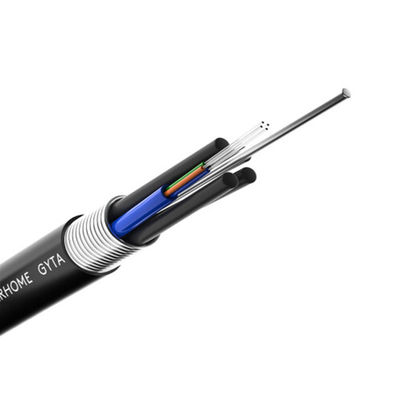

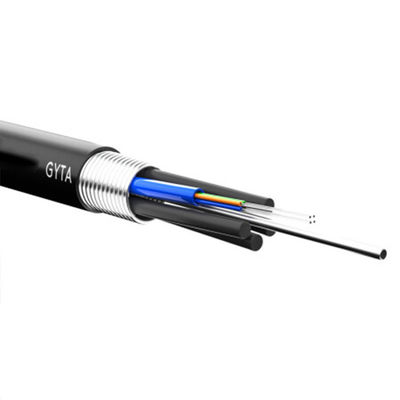

Note: The standard loose-tube stranded light armored (GYTA) optical cable complies with YD/T901-2001 and IEC60794-1 standards. This product is mostly used for long-distance communication and inter-office communication pipelines and overhead laying. Fiber optic cables with different core counts and different lengths can be provided according to customer needs.

Fiber Standard Comparison
Optical Fiber Type	Muliti Mode	G.651	A1a:50/125	Gradient Refractive Index
	Muliti Mode	G.651		Gradient Refractive Index		A1b:50/126
		Single Mode	G.652 (A,B,C,D)		B1.1 Conventional
				G.653		B2 zero-dispersion shift
				G.654		B1.2 cut-off is long shifted
				G.655		B4 non-zero dispersion shift

Product Description

APPLICATION

Adopted to Outdoor distribution.

Suitable for aerial.pipeline laying method.

Long distance and local area network communication.

CHARACTERISTICS

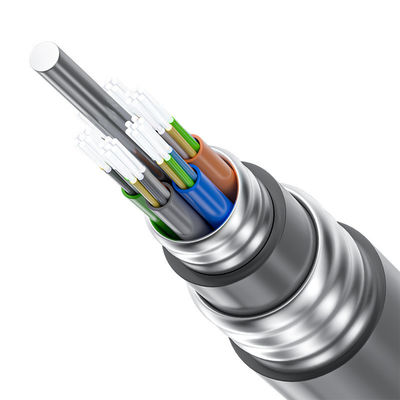

steel wire strength.filler protect.

tube fiber.steel tape armord.

Good ultra violet radiation resistant property.

Good moisture-resistance.

Product Design

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

Customer evaluation

Company Profile

Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept

Service&Production Capacity

Foreign Exhibitions

Cooperative Brand&Certification

Payment&Transportation Method

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
