Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable

브랜드 이름: HXCOWO
Model Number: HX-SW3
MOQ: 50미터
가격: negotiable
포장에 대한 세부 사항: 나무 샤프트 + 수출용 골판지 상자
상세 정보
제품 설명
상세 정보
원래 장소:
광둥, 중국
인증:
RoHS
종류:
야외 광섬유 케이블
지휘자 수:
≥ 10
적용:
텔레콤 통신
제품 이름:
GYFTY 광섬유 케이블
재킷:
PVC LSZH LSOH PE HDPE
길이:
맞춘 길이
섬유 종류:
G652D/G657A1/G657A2
섬유 번수:
2-288 핵심
키워드:
야외 섬유 케이블
재킷 색:
고객의 특별 요구 사항
서비스:
OEM ODM은 받아들입니다
항구:
셰인젠
공급 능력:
1500000개 부분 / 부분마다 달
강조하다:

144 코어 외관 섬유 케이블

,

GYFTY 야외 섬유 케이블

,

FTTH 야외 섬유 케이블

제품 설명
TECHNICAL PARAMETERS
Core Number
Loose Tube Quantity
Filling Rope Number
Fiber Cable Diameter(mm)
2-6
1
4
9
8-12
2
3
9
14-18
3
2
9
20-24
4
1
9
26-30
5
0
9
32-36
5
0
9
38-48
5
0
9
50-60
5
0
9
62-72
6
0
9.5
74-84
7
1
10.5
86-96
8
0
10.5
98-108
9
1
11.5
110-120
10
0
12
122-144
12
0
13
146-216
18
0
13

Fiber Optic Cable Weight
(kg/km)
Allowable Tensile Force
Long Term/Short Term
(N)
Allowable Flattening Force Long Term/Short Term
(N/100mm)
Bending Radius Static/Dynamic
(mm)
88
800/1500
500/1000
15D/30D
88
800/1500
500/1000
15D/30D
88
800/1500
500/1000
15D/30D
88
800/1500
500/1000
15D/30D
88
800/1500
500/1000
15D/30D
88
800/1500
500/1000
15D/30D
88
800/1500
500/1000
15D/30D
88
800/1500
500/1000
15D/30D
100
1000/2000
500/1000
15D/30D
120
1000/2000
500/1000
15D/30D
120
1500/2500
500/1000
15D/30D
150
1500/2500
500/1000
15D/30D
150
1500/2500
500/1000
15D/30D
150
1500/2500
500/1000
15D/30D
150
1000/2000
500/1000
15D/30D
PRODUCT FEATURES
①Has good mechanical properties and temperature characteristics
②The loose tube material itself has good hydrolysis resistance and high strength
③The tube is filled with special grease to provide critical protection for the optical fiber
④Good pressure resistance and softness
Use the following measures to ensure the waterproof performance of fiber optic cables
①Single non-metallic center strengthening core
②The loose tube is filled with special waterproof compound
③Fully cable core filled
PRODUCT DESCRIPTION
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 0
OUTDOOR FIBER OPTIC CABLE
A-grade Fiber Core/Quality Assurance
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 1

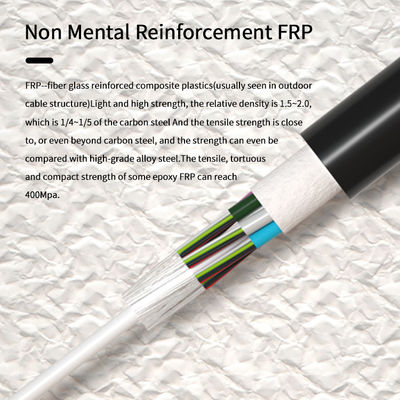

NON MENTAL REINFORCEMENT FRP
FRP--fiber glass reinforced composite plastics(usually seen in outdoor cable structure)Light and high strength, the relative density is 1.5~2.0, which is 1/4~1/5 of the carbon steel And the tensile strength is close to, or even beyond carbon steel, and the strength can even be compared with high-grade alloy steel.The tensile, tortuous and compact strength of some epoxy FRP can reach 400Mpa.
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 2

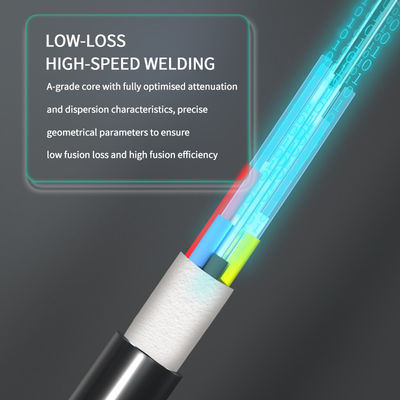

LOW-LOSS, HIGH-SPEED WELDING
A-grade core with fully optimised attenuation and dispersion characteristics, precise geometrical parameters to ensure low fusion loss and high fusion efficiency
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 3

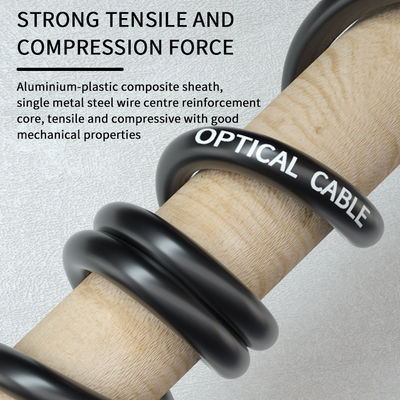

STRONG TENSILE AND COMPRESSION FORCE
Aluminium-plastic composite sheath, single metal steel wire centre reinforcement core, tensile and compressive with good mechanical properties
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 4

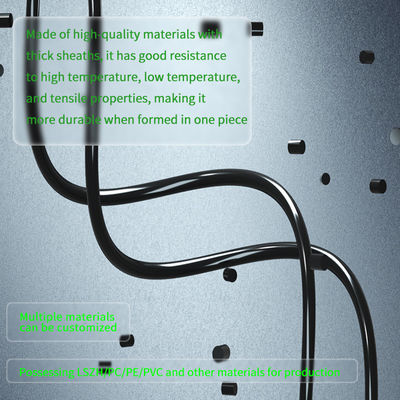

Made of high-quality materials with thick sheaths, it has good resistance to high temperature, low temperature, and tensile properties, making it more durable when formed in one piece
Possessing LSZH/PC/PE/PVC and other materials for production
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 5

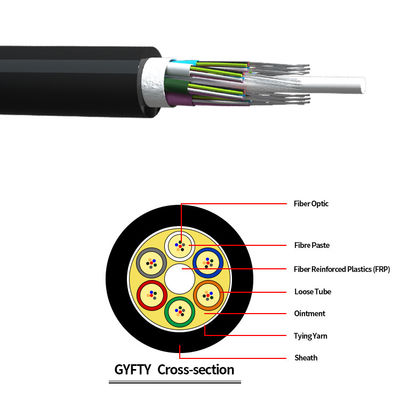

GYFTY
There is a glass fiber reinforcement plastic at the center of the fiber core.Loose tube (and filling rope) is twisted around the FRP to form a round cable core, and the inner side is filled with waterblocking compounding. And the inner jacket for each cable core is PE material
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 6
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 7
PRODUCT DESIGN
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 8
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 9
COMPANY PROFILE
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 10
Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !
SERVICE & PRODUCTION CAPACITY
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 11
FOREIGN EXHIBITIONS
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 12
COOPERATIVE BRAND & CERTIFICATION
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 13
PAYMENT & TRANSPORTATION METHOD
Outdoor Fiber Cable GYFTY 2 4 6 8 144 Core Per Meter Laser Drop FTTH Outdoor Cable 14
FAQ
1. Are you the real manufacturer?
Yes.  We are the real manufacturer  with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
