Outdoor 12 Core Armoured Fiber Optic Cable GYFTA53 Armored Optical Cable

모든 범주

Outdoor 12 Core Armoured Fiber Optic Cable GYFTA53 Armored Optical Cable

브랜드 이름:	HXCOWO
모델 번호:	HX-SW5
MOQ:	50미터
가격:	negotiable
포장에 대한 세부 사항:	나무 샤프트 + 수출용 골판지 상자

상세 정보

제품 설명

상세 정보

원래 장소:

광둥, 중국

야외 광섬유 케이블

지휘자 수:

제품 이름:

GYFTA53 파이버 케이블

텔레콤 통신

PVC LSZH LSOH PE HDPE

맞춘 길이

섬유 종류:

G652D/G657A1/G657A2

케이블 유형:

야외용 장갑

섬유 번수:

2-288 핵심

나무로 된 드럼

OEM ODM은 받아들입니다

공급 능력:

1500000개 부분 / 부분마다 달

강조하다:

Outdoor 12 Core Armoured Fiber Optic Cable

GYFTA53 Armored Optical Cable

Outdoor Armored Optical Cable

제품 설명

GYFTA53 Outdoor Fiber Optic Cable for Telecom Comunication Anti-Rodent Armored Outdoor

TECHNICAL PARAMETERS
Fiber Core Number	Diameter (mm)	Weight (kg/km)
2-36	13.9	202
38-72	15.1	241
74-96	17.1	290
98-120	18.6	333
122-144	20.2	281

Allowable Tensile Force Long Term/Short Term (N)		Allowable Pressure Long Term/Short Term (N/100mm)	Allowable Pressure Long Term/Short Term (N/100mm)
1000/3000		1000/3000	1000/3000
Scope of application	Suitable for long-distance communication and inter-office communication	Fiber type	G652D
Laying method	Direct burial	Operating temperature	40℃-70℃

PRODUCT DESCRIPTION

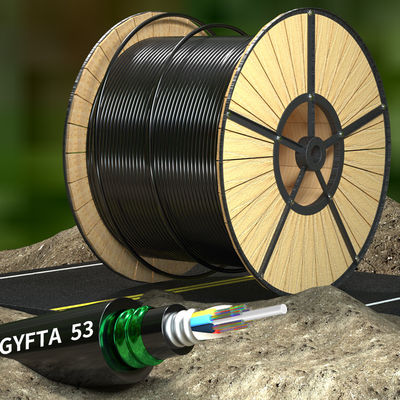

GYFTA53 SINGLE-MODE OUTDOOR DOUBLE ARMORED FIBER OPTIC CABLES

Applied to underground laying/outdoor overhead/indoor trunking

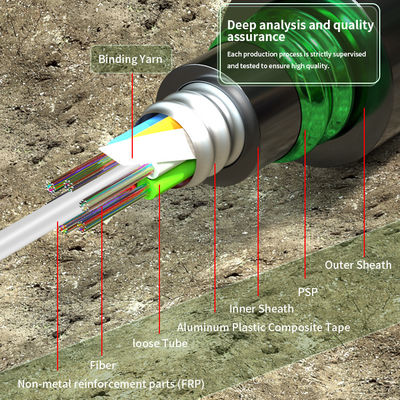

DEEP ANALYSIS AND QUALITY ASSURANCE

Each production process is strictly supervised and tested to ensure high quality

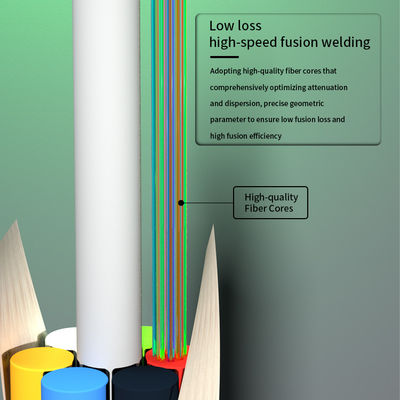

LOW LOSS,HIGH-SPEED FUSION WELDING

Adopting high-quality fiber cores that comprehensively optimizing attenuation and dispersion, precise geometric parameter to ensure low fusion loss and high fusion efficiency

PSP

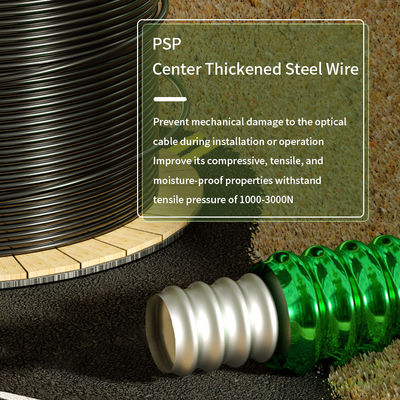

CENTER THICKENED STEEL WIRE

Prevent mechanical damage to the optical cable during installation or operation Improve its compressive, tensile, and moisture-proof properties withstand tensile pressure of 1000-3000N

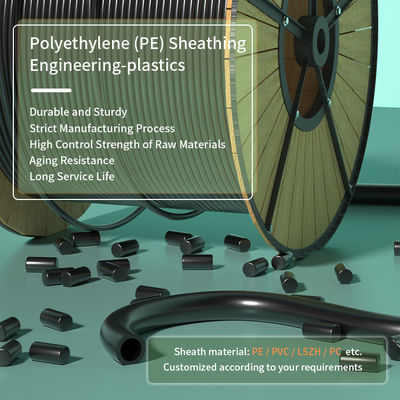

POLYETHYLENE(PE)SHEATHING ENGINEERING-PLASTICS

Durable and Sturdy Strict Manufacturing Process High Control Strength of Raw Materials Aging Resistance Long Service Life

Sheath material:PE/PVC/LSZH/PC etc. Customized according to your requirements

CLEAR METER MARKERS UFFICIENT METER QUANTITY

Clear meter markings on the PE outer sheath for convenient and fast construction wiring

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
