| 브랜드 이름: | HXFiber |
| Model Number: | HX-GQJG-03 |
| 가격: | negotiable |

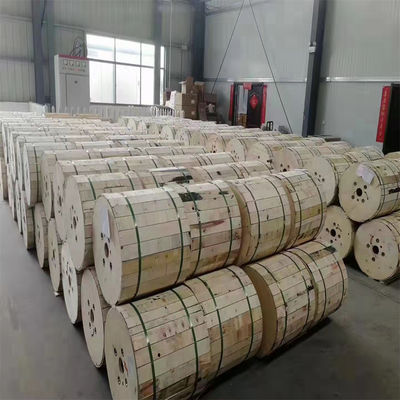

| 포장에 대한 세부 사항: | 1KM/드럼 또는 2KM/드럼, 나무로 포장 |

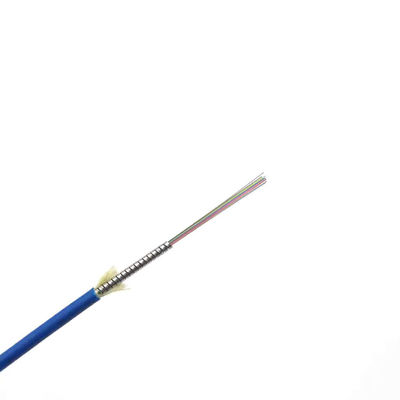

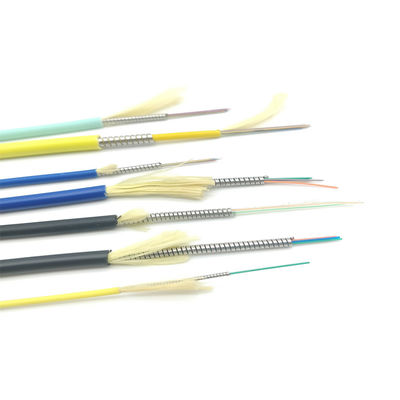

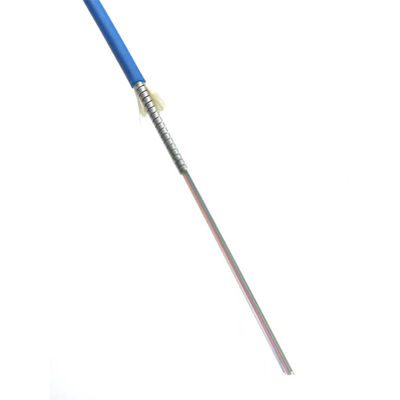

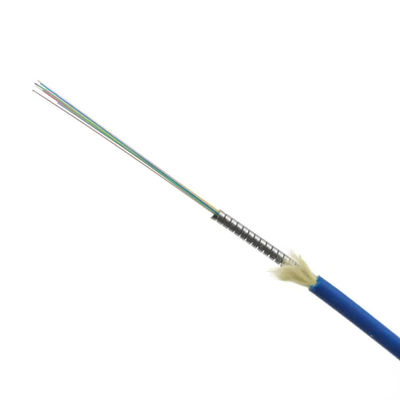

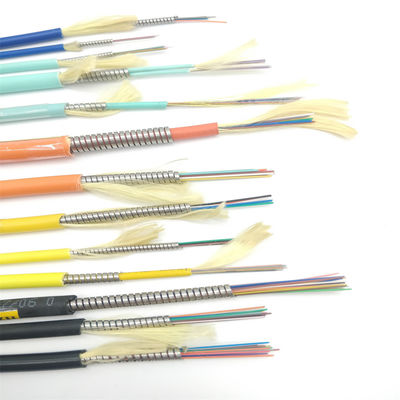

Long-distance Armored Fiber Optic Cable for 3.0 SM 1core 2core 4core 6core G652D LSZH
|
Item
|
Value
|
|
Type
|
Outdoor/Indoor Fiber Optic Cable
|
|
Place of Origin
|
Guangdong CHINA
|
|
Brand
|
OEM
|
|
Number of Conductors
|
≥ 1
|
|
Product name
|
Distributed sensing fiber optic cable
|
|
Application
|
chemical plant, oil refinery, forest, subway...
|
|
Fiber
|
9/125um, 62.5/125um
|
|
Cable OD.
|
3.0mm/4.0mm/5.0mm
|
|
HS CODE
|
8544700000
|
|
Armored
|
Spiral steel armored protected
|
|
Mode
|
Singlemode ,MultiMode
|
|
SM / MM
|
G.652D, G.657A1 or G.657A2 ,OM1,OM2,OM3,OM4, OM5
|
|
Metal Braiding
|
Stainless steel
|
|
Tensile
|
Kevlar
|
|
Temperature(°C)
|
-20~+75°C
|
|
Cable loss(db/km)
|
850nm ≦3.5 ; 1300nm ≦1.5
|
|
Tensile(N)
|
Long Term: 300N ; Short Term : 500N
|
|
Bending Radius(mm)
|
Dynamic 20D, Static 10D
|
|
|
