좋은 가격 온라인으로

제품 세부 정보

집 > 상품 >
광전 복합 케이블
>
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather
모든 범주

야외 무장한 섬유 옵틱 케이블

실내외 장갑 섬유

전술적 광섬유 케이블

광전 복합 케이블

야외 광섬유 케이블

실내 광섬유 케이블

광섬유 패치 코드

광섬유 땋아 늘인 머리

광섬유 부속물

광섬유 단자함

광섬유 패치 패널

광섬유 분배기

광 섬유용 모듈
문의하기
sales@hxfiber.com
지금 접촉하세요
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather
  • 이름
  • 이름
  • 이름
  • 이름
  • 이름
  • 이름

Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather

브랜드 이름: HX
Model Number: HX-DL1
가격: negotiable
포장에 대한 세부 사항: Double jacket single mode OS1 OS2 outdoor aerial dielectric ADSS 48 core fibre optic cable
상세 정보
제품 설명
상세 정보
원래 장소:
광둥, 중국
인증:
RoHS
종류:
광섬유 케이블
지휘자 수:
≥ 10
적용:
텔레콤 통신
제품 이름:
ADSS 광섬유 케이블
색상:
검은색
재킷:
더블/싱글 PE 쉬스
섬유 번수:
6 8 12 24 36 48 72 96 144 288
섬유 종류:
단일 모드 / 멀티 모드
길이:
맞춘 길이
케이블 유형:
야외 광섬유 케이블
포장:
나무로 된 / 합판 릴
항구:
셰인젠
공급 능력:
1500000개 부분 / 부분마다 달
강조하다:

Overhead ADSS Aerial Fiber Optic Cable

,

Overhead ADSS Aerial Cable

,

Double Jacket Leather ADSS Cable

제품 설명

Single/Double Jacket Leather ADSS Fiber Optic Cable for Overhead Aerial Applications

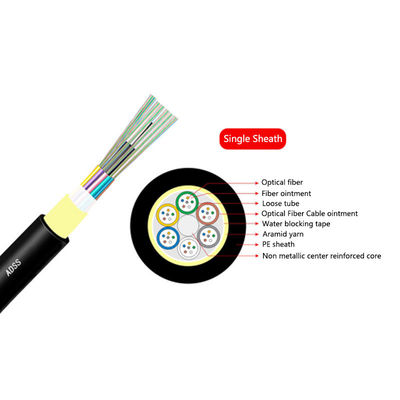

Single sheath







Reference outer diameter
(mm)

Reference weight(Kg/Km)



Daily average working tension (KN)


Maximum allowable working tension
(KN)


Breaking strength (KN)

PE outer sheath
AT outer sheath



9.0
75
85
1.2
3
7
9.8
80
90
1.5
5
10
10
90
100
2
6
15
10
90
100
2.2
8
18

Tensile element cross-sectional area (㎜²)

Elastic Modulus
 (KN/㎜²)

Operating, storage and transport temperature range (℃)

Thermal expansion coefficient
(10-6/K)

suitable span
 (M)
3
4.5

-40~+60
1.2
50
3.5
7

-40~+60
1.3
100
4.5
8.3

-40~+60
1.3
150
7.5
9.5

-40~+60
1.3
200

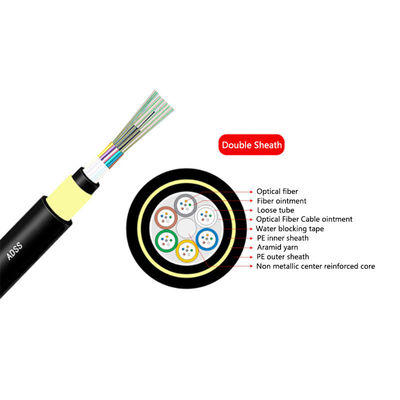

Double sheath










Reference outer diameter
(mm)

Reference weight(Kg/Km)



Daily average working tension (KN)
Maximum allowable working tension
(KN)



Breaking strength (KN)




PE outer sheath
AT outer sheath






11.5
125
136
1.5
4
10



12
132
142
2.25
6
15



13.3
137
148
3
8
20



13.6
145
156
3.6
10
24



13.8
147
159
4.5
12
30



14.5
164
177
5.4
15
36



14.9
171
185
6.75
18
45



15.1
179
193
7.95
22
53





Tensile element cross-sectional area (㎜²)


Elastic Modulus
(KN/㎜²)

Operating, storage and transport temperature range (℃)

Thermal expansion coefficient
(10-6/K)

Suitable span (m) (corresponding to meteorological conditions)








A
B
C
D
4.6
7.6

-40~+60
1.8
160
100
140
100
7.6
8.3

-40~+60
1.5
230
150
200
150
10.35
9.45

-40~+60
1.3
300
200
290
200
13.8
10.8

-40~+60
1.2
370
250
350
250
14.3
11.8

-40~+60
1.0
420
280
400
280
18.4
13.6

-40~+60
0.9
480
320
460
320
22
16.4

-40~+60
0.6
570
380
550
380
26.4
18

-40~+60
0.3
670
460
650
460
Meteorological region
Wind speed (m/s)
Icing (mm)
Extra negative (N/m)
A
25
0
0.7
B
35
0
0.7
C
10
5
2.5
D
10
10
4.4
Product Description
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 0
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 1
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 2
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 3
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 4

Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 5
Product Design
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 6
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
Customer evaluation
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 7
Company Profile

Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 8
Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept

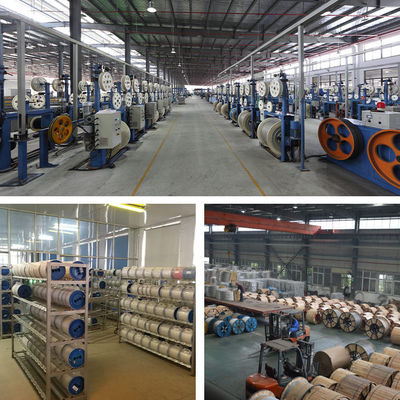

Service&Production Capacity
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 9
Foreign Exhibitions
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 10
Cooperative Brand&Certification
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 11
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 12
Payment&Transportation Method
Overhead ADSS Aerial Fiber Optic Cable Single / Double Jacket Leather 13
FAQ
1. Are you the real manufacturer?
Yes.  We are the real manufacturer  with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
